KEMET Telecom Aluminum Electrolytic Capacitors
KEMET Telecom Aluminum Electrolytic Capacitors feature a 2.5VDC to 600VDC voltage range, up to 1,2000,000µF maximum capacitance rating, and 2,000 to 18,000 hours of life. These capacitors offer long-life modules, low ESR, ultra-high CV, high reliability, and press-fit benefits. Some of these capacitors are AEC-Q200 qualified.

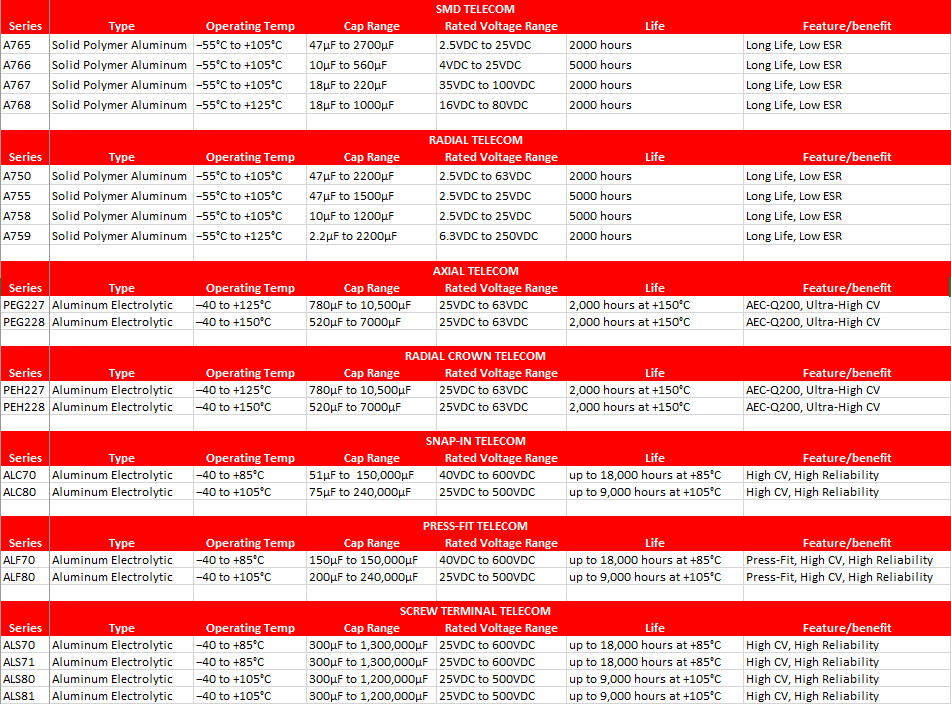

Specifications
A76x Capacitors
KEMET A765 Aluminum Capacitors
47µF to 2700µF capacitance range, ±20% capacitance tolerance, and 25VDC maximum voltage rating.
KEMET A766 Surface Mount Aluminum Capacitors
10µF to 560µF capacitance range with up to ±20% capacitance tolerance and 25VDC max. voltage rating.
KEMET A767 Aluminum Organic Polymer Capacitors
Features 18µF to 220µF capacitance range, ±20% capacitance tolerance, and 35VDC to 100VDC voltage.
KEMET A768 125°C Aluminum Polymer Capacitors
16VDC to 80VDC rated voltage, 18µF to 1000µF capacitance range, and ±20% capacitance tolerance.
A75x Capacitors
KEMET A750 Radial Solid Polymer Aluminum Capacitors
2.5VDC to 63VDC rated voltage, 2200µF maximum capacitance, and up to ±20% capacitance tolerance.
KEMET A755 Single-Ended Capacitors
Provides 5000 hours at 105°C and 47µF to 1500µF capacitance range in a through-hole form factor.
KEMET A758 Single-Ended Capacitors
Miniature through-hole devices that offer 5000 hours at 105°C and 10µF to 1200µF capacitance range.
KEMET A759 Single-Ended Capacitors
High voltage, 2000 hours at 125°C, low impedance, and 2.2µF to 2200µF capacitance range.
