Antenova SR4G053 Evaluation Board

Antenova SR4G053 Evaluation Board is designed to evaluate SR4G053 Global Navigation Satellite System (GNSS) raptor antenna. This evaluation board interfaces to the SR4G053 raptor antenna via a Surface Mount Adhesive (SMA) female connector.

Features

  • Evaluates SR4G053 GNSS raptor antenna
  • Interfaces via SMA female connector

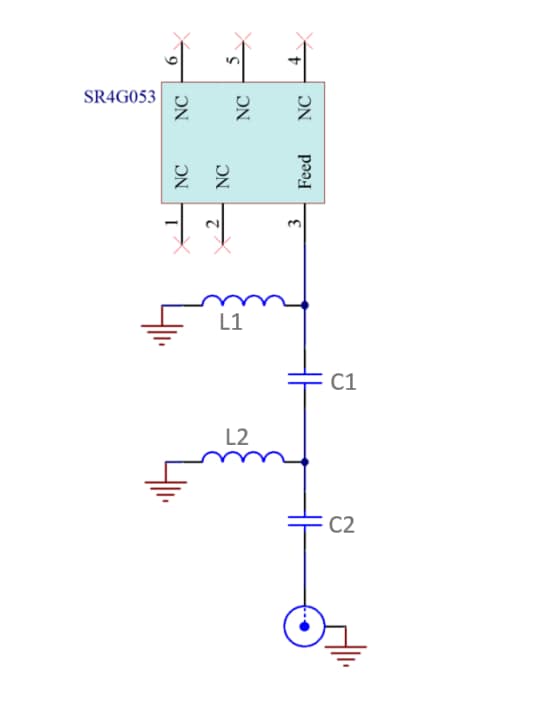

SR4G053 Evaluation Board Matching Circuit

Schematic - Antenova SR4G053 Evaluation Board

View SR4G053 Raptor GNSS Antenna

Antenova SR4G053 Raptor GNSS Antenna

1164MHz to 1249MHz and 1559MHz to 1609MHz frequency ranges for GNSS embedded applications.
